Why Are Split Case Pumps Widely Used in Industrial Applications?

The industrial pump market is currently undergoing a period of robust expansion. According to an authoritative report by Verified Market Research (VMR), the global Split Casing Pump market was valued at approximately USD 7.05 billion in 2024 and is projected to reach USD 12.8 billion by 2032, growing at a CAGR of 6.89% [1].

This widespread adoption is not accidental. Split case pumps—specifically Axial Split Case Pumps—have become the backbone of critical infrastructure due to their unique hydraulic design and operational resilience.

Industry Insight:

"In mission-critical applications requiring high reliability and ease of maintenance, split case pumps remain the preferred configuration, especially in scenarios where flow rates exceed 2,000 m^3/h." — Hydraulic Institute (HI) Standard

1. Superior Hydraulic Efficiency

One of the primary drivers for the adoption of split case pumps is their ability to minimize energy losses. Given that pumping systems account for nearly 20% of the world's electrical energy demand, this is a crucial factor.

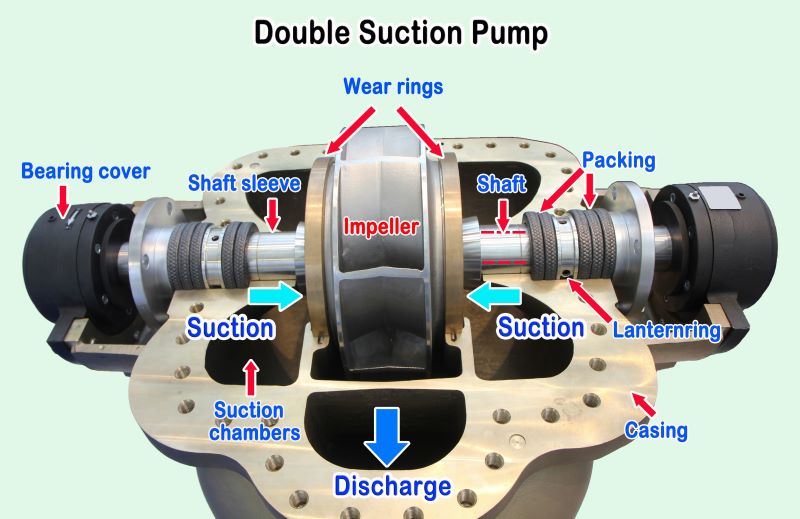

• Double Suction Impeller Design: Unlike end-suction pumps, split case pumps typically feature a double suction impeller. This design allows fluid to enter the impeller from both sides simultaneously, not only increasing flow capacity but also optimizing fluid dynamics.

• Axial Thrust Balance: By drawing in fluid from two sides, hydraulic forces are balanced. Theoretically, this virtually eliminates axial thrust, significantly reducing the load on bearings and seals. The reduction in axial thrust Fa can be expressed by the following relationship:

        In single-suction pumps, this force typically requires heavy-duty thrust bearings to counteract.

• Efficiency Ratings & Calculation: Industry data from manufacturers like Andritz and Wilo indicates that the hydraulic efficiency of high-quality split case pumps frequently exceeds 90%. Pump efficiency (η) can be precisely calculated using the following formula:

Where:

• ρ = fluid density (kg/m³, typically 1000 kg/m³ for water),

• g = gravitational acceleration (9.81 m/s⊃2;),

• Q = volumetric flow rate (m³/s),

• H = total head (m),

• P = shaft power (W).

• Low NPSH Requirements:






The double suction design inherently lowers the required Net Positive Suction Head (NPSHr). This reduces the risk of Cavitation—a phenomenon that causes pitting and structural damage to impellers. For high-flow applications, the NPSH margin (NPSHa - NPSHr) is critical.

2. Ease of Maintenance and Reduced Downtime

In heavy industries such as oil & gas or power generation, downtime costs can spiral into millions of dollars per hour. The mechanical architecture of split case pumps addresses this directly.

• The "Split" Advantage: The upper casing can be removed to expose the rotating assembly without disturbing the suction or discharge piping, and without moving the driver (motor/turbine).

• Reduced MTTR (Mean Time To Repair): Technicians can access internal components (bearings, wear rings, impeller) without a full system teardown, drastically reducing maintenance turnaround times compared to radially split pumps.

Maintenance Comparison Analysis

3. High-Volume Capability

Split case pumps are the "heavy lifters" of fluid dynamics. Their between-bearings design allows for larger impellers and higher flow rates that would typically destabilize cantilevered (overhung) pumps.

• Flow Ranges: These pumps are engineered to handle massive flow rates, often exceeding 40,000 m³/h (approx. 176,000 GPM) in custom configurations.

• Water Market Dominance: According to a report by Future Market Report (2024), the Water Supply segment accounts for 44.7% of the split case pump market share [2]. They are the standard for municipal water distribution and desalination plants where consistency in high-volume transfer is non-negotiable.

4. Economic Viability: Life Cycle Cost (LCC)

While the initial capital expenditure (CAPEX) for a split case pump is typically higher than an end-suction pump, the Life Cycle Cost (LCC) analysis heavily favors split case designs for long-term industrial projects.

The LCC is calculated as follows:

Where:

• Cic = Initial Cost

• Cin = Installation Cost

• Ce = Energy Cost — Typically 40-80% of LCC

• Co = Operation Cost

• Cm = Maintenance Cost

• Cs = Downtime Cost

• ROI Data: A 2023 comparative analysis noted that for continuous duty applications (24/7 operation), the 2-5% efficiency gain offered by a premium split case pump results in energy savings that typically recover the initial price difference within 24 to 36 months.

Conclusion

The dominance of split case pumps in the industrial sector is supported by hard data. With the market set to exceed USD 12 billion by 2032, their role in global infrastructure is expanding. By combining balanced hydraulic forces, superior efficiency, and a maintenance-friendly architecture, split case pumps offer a technical and economic value proposition that is unmatched for high-flow, mission-critical applications.

References

• [1] Verified Market Research. (2024). Global Split Casing Pump Market Size And Forecast.

• [2] Future Market Report. (2024). Split Case Pumps Market Size, Share, Growth | CAGR Forecast 2032.

• [3] Hydraulic Institute. (2023). Pump Life Cycle Costs: A Guide to LCC Analysis for Pumping Systems.
