What Are The Common Causes of Split Case Pump Failure And How To Prevent Them?

Views: 155     Author: Patrick     Publish Time: 2026-01-28      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Split case pumps (axially and radially split) are the workhorses of industrial applications, favored for their high flow capabilities and ease of maintenance. However, despite their robust design, they are susceptible to specific failure modes.

According to data from the Hydraulic Institute (HI), while the design life of these pumps often exceeds 15 years, the actual Mean Time Between Failures (MTBF) is frequently much lower. A maintenance study by DuPont indicates that pump repairs constitute the largest single category in many plant maintenance budgets.

"Reliability is not just about the quality of the equipment, but the quality of the operation and maintenance strategy applied to it." — Barringer Process Reliability

The following is a breakdown of failure causes and prevention strategies, combining tribology, hydraulics, and industry statistics.

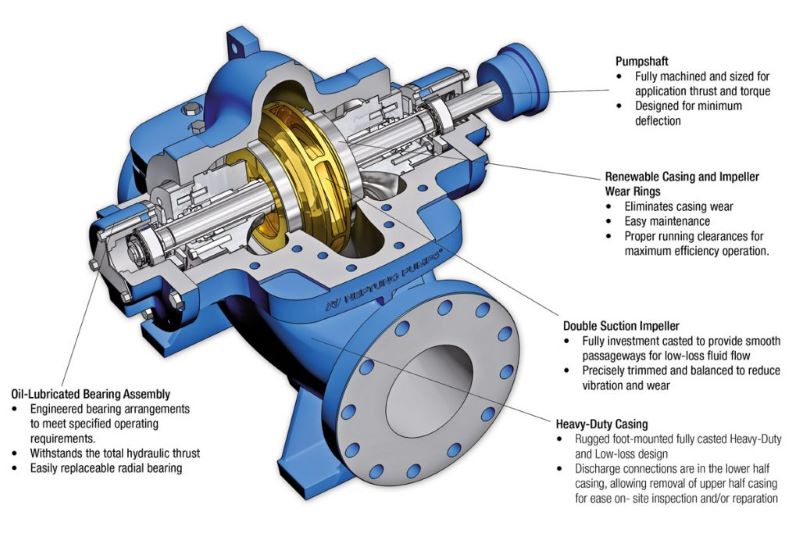

Split Case Pump


1. Mechanical Seal Failure

Mechanical seal failure is the most common cause of pump downtime. According to repair records from major manufacturers like Grundfos and Flowserve, mechanical seal failures account for 30% to 50% of all pump failures. However, the seal is rarely the root cause; it is usually the victim of a systemic issue.

Common Contributors:

  • Dry Running: Lack of fluid causes friction heat to spike, destroying seal faces within seconds.

  • Shaft Deflection: Excessive radial load causes the shaft to bend. According to API 610 standards, to ensure seal longevity, deflection at the seal faces should not exceed 0.002 inches (0.05 mm).

  • Fluid Film Breakdown: A micron-level fluid film must be maintained between seal faces.

Relevant Formula: Seal Face Heat GenerationTo predict failure risk, one must understand the heat generation (Pg) at the seal interface:

Pg = μ · Pm · A · V

  • μ: Coefficient of friction

  • Pm: Mean contact pressure

  • A: Contact area

  • V: Sliding velocity

Prevention Strategy:

  • Install Power Monitors: Trip the motor immediately if a dry-run condition (sudden drop in amperage) is detected.

  • Upgrade Flushing Plans: Utilize piping plans compliant with API 682 (e.g., Plan 11 or Plan 53) to ensure fluid circulation and cooling within the seal chamber.


2. Bearing Fatigue and Lubrication Issues

Bearings are the second most common failure point. A comprehensive study by SKF, a global leader in bearing technology, states that 36% of premature bearing failures are caused by improper lubrication (incorrect specification or quantity), and another 14% by contamination.

Common Contributors:

  • Contamination: Just 0.002% water in the oil can reduce bearing life by 48%.

  • Over-greasing: Causes "churning," leading to excessive heat generation.

  • False Brinelling: Occurs when a standby pump is subjected to external vibration, causing indentations in the bearing raceways.

Relevant Formula: L10 Bearing LifeAccording to ISO 281, the basic rating life (L10h, in operating hours) is calculated as:

L10h = (10⁶ / 60n) × (C / P)^p

  • n: Rotational speed (RPM)

  • C: Dynamic load rating

  • P: Equivalent dynamic bearing load

  • p: Exponent (3 for ball bearings, 10/3 for roller bearings)

Prevention Strategy:

  • Implement Oil Analysis: Monitor ISO 4406 cleanliness codes to detect moisture or metal particulates early.

  • Use Bearing Isolators: Switch from standard lip seals to labyrinth-style Bearing Isolators to achieve IP66 protection.


3. Hydraulic Instability: Cavitation and BEP Deviation

Operating a pump away from its Best Efficiency Point (BEP) is a primary cause of hydraulic failure. ANSI/HI 9.6.3 standards suggest the Preferred Operating Region (POR) should be between 70% and 120% of the BEP.

The Two Main Threats:

  • Cavitation: Occurs when Net Positive Suction Head Available (NPSHa) is lower than Required (NPSHr). Bubbles collapse in high-pressure zones, creating micro-jets with impact pressures exceeding 10,000 psi.

  • Internal Recirculation: Operating at low flow causes fluid to recirculate at the impeller eye, triggering severe vibration.

Data: Reliability vs. BEPThe following table illustrates the relationship between flow rate and failure risk (based on Barringer reliability curves):

Flow (% of BEP) Failure Risk
< 40% Extremely High (Recirculation, Temp Rise, Shaft Deflection)
60% - 80% Medium
80% - 110% Lowest (Optimal Zone)
> 120% High (Cavitation, Motor Overload)

Cavitation Formula:To prevent cavitation, the following condition must be met (a 0.5m safety margin is recommended):

NPSHa ≥ NPSHr + Margin

Calculating Available Head:

NPSHa = (Patm + Pstatic - Pvap - hf) / ρg

Prevention Strategy:

  • System Matching: Ensure pump sizing places the duty point near the BEP.

  • Variable Frequency Drives (VFD): Use VFDs to adjust pump speed to match demand rather than throttling valves, thereby preserving NPSH margins.


4. Misalignment and Soft Foot

Shaft misalignment is a "silent killer." According to Reliabilityweb, even a misalignment of 0.002 inches (0.05 mm) can reduce seal and bearing life by 50%.

Technical Impact:

  • Vibration Signatures: Generates characteristic 1X and 2X RPM vibration peaks.

  • Soft Foot: When pump feet do not sit flat on the baseplate, tightening hold-down bolts distorts the casing, altering internal clearances.

Standard Citation:

"Vibration velocity of typical centrifugal pumps should not exceed the limits specified in ISO 10816-3 (Zone A/B limit typically around 4.5 mm/s RMS for long-term operation)." — ISO Standard

Prevention Strategy:

  • Laser Alignment: Mandate laser alignment over straight-edge methods and adhere strictly to tolerances.

  • Correct Soft Foot: Use precision stainless steel shims to control soft foot error to within 0.002 inches before final alignment.


Summary of Best Practices

To transition from reactive repairs to Reliability-Centered Maintenance (RCM), consider this hierarchy of interventions:

  1. Vibration Analysis: Perform routine FFT spectrum analysis to identify unbalance or bearing defects months before failure.

  2. Thermography: Identify hot spots in bearing housings or couplings.

  3. Strict SOPs: Enforce Standard Operating Procedures for startup and shutdown to avoid Water Hammer and Thermal Shock.

By systematically addressing these four core areas—Seals, Bearings, Hydraulics, and Alignment—operators can significantly reduce Lifecycle Costs (LCC) and ensure process safety.
