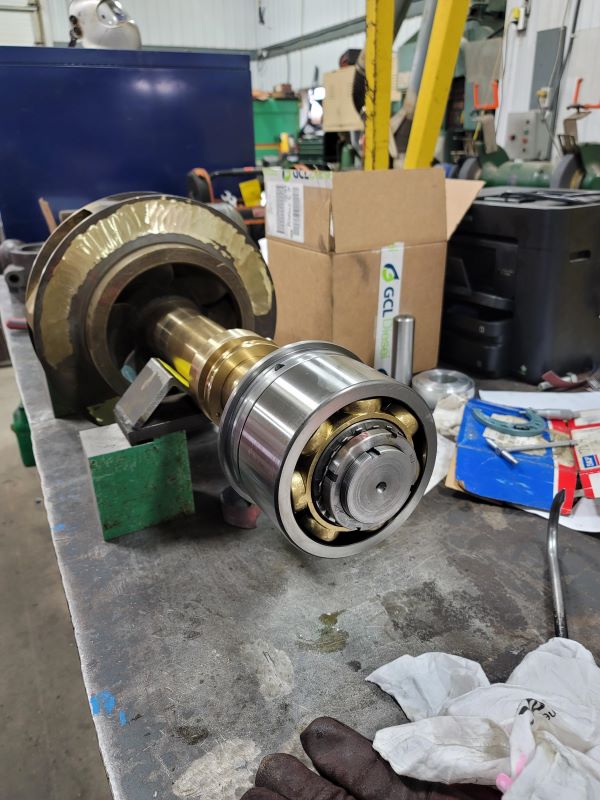

How to Prolong the Service Life of Your Split Case Pump?

Split case pumps are the workhorses of municipal water supply, HVAC systems, and industrial fluid processing. However, their reliability is often compromised by operational neglect or installation errors.

According to the Hydraulic Institute, the initial purchase price represents less than 10% of a pump's total Life Cycle Cost (LCC). The remaining 90% is consumed by energy, maintenance, and downtime. Therefore, extending the service life of these assets is not just an engineering necessity but a financial imperative.

The following strategies, backed by industry data and technical principles, will help you maximize the Mean Time Between Failures (MTBF) of your split case pumps.

1. Prioritize Precision Alignment

Misalignment is one of the leading causes of premature pump failure. When the pump shaft and motor shaft are not perfectly collinear, it generates excessive radial and axial forces.

• The Data: A study referenced by Machinery Lubrication suggests that misalignment is responsible for over 50% of rotating machinery malfunctions.

• The Physics: Misalignment directly impacts bearing fatigue life (L10), which is calculated as:

  L10 = (C / P)⊃3; × 10⁶

  Where C is the dynamic load rating, P is the equivalent dynamic bearing load (which increases significantly with misalignment), and the exponent 3 applies to ball bearings.

• The Consequence: Even a misalignment of just 0.002 inches can significantly increase the load (P), thereby exponentially reducing bearing life.

• Technical Solution:

• Utilize laser alignment tools rather than dial indicators for higher precision.

• Address "Soft Foot" immediately to prevent casing distortion.

2. Operate Near the Best Efficiency Point (BEP)

Every split case pump has a hydraulic sweet spot known as the Best Efficiency Point (BEP). Operating significantly to the left or right of this point on the pump curve is detrimental.

• The Reliability Curve: According to the Barringer Process Reliability methodology, seal and bearing reliability drops drastically when flow rates fall below 60% or exceed 110% of BEP.

• Pump Affinity Laws: If system demand changes, avoid throttling valves. Instead, use a Variable Frequency Drive (VFD) or trim the impeller. The changes in performance follow the Affinity Laws:

  Flow: Q1 / Q2 = N1 / N2Head: H1 / H2 = (N1 / N2)⊃2;Power: P1 / P2 = (N1 / N2)⊃3;

  This demonstrates that a small reduction in speed (N) leads to a cubic reduction in power consumption (P), optimizing LCC.

• Recommendation: Maintain operation within the preferred operating region (POR), typically 80% to 110% of the BEP.

3. Manage Net Positive Suction Head (NPSH)

Cavitation is a silent killer of split case pumps. It occurs when the pressure at the suction eye drops below the vapor pressure of the liquid.

• The Damage: Imploding bubbles cause pitting on the impeller and severe vibration.

• Industry Standard: The Hydraulic Institute (ANSI/HI 9.6.1) recommends a specific margin to suppress cavitation damage. The relationship should be:

  NPSHa ≥ 1.1 × NPSHr3

  Where NPSHa is the Available NPSH and NPSHr3 is the Required NPSH at a 3% head drop.

• Actionable Step: Ensure your suction piping design minimizes friction losses (hf) to keep NPSHa high.

4. Master the Tribology (Lubrication)

Bearings sustain the rotating assembly, and their failure leads to catastrophic pump seizure. Lubrication is the primary defense.

• The Statistic: Bearing manufacturer SKF reports that roughly 36% of premature bearing failures are caused by improper lubrication (wrong specification or contamination).

• Contamination Control:

• Implement ISO 4406 cleanliness codes for your oil.

• Moisture contamination of just 0.05% (500 ppm) can cut bearing life by nearly 50%.

• Actionable Steps:

• Use labyrinth seals or magnetic bearing isolators instead of standard lip seals.

• Regularly sample oil for particulate analysis.

5. Implement Predictive Maintenance (PdM)

Transitioning from reactive maintenance ("fix it when it breaks") to predictive maintenance is crucial for longevity.

• Vibration Analysis: Routine monitoring using Fast Fourier Transform (FFT) analysis can detect issues like impeller imbalance or vane pass frequency issues.

• The Savings: The U.S. Department of Energy (DOE) estimates that a functional predictive maintenance program can:

• Reduce maintenance costs by 25% to 30%.

• Eliminate breakdowns by 70% to 75%.

• Thermal Monitoring: Use thermography to monitor the stuffing box or mechanical seal chamber to detect friction anomalies early.

Summary of Key Metrics

Parameter	Recommended Target / Limit	Source
Operation Range	80% – 110% of BEP	Barringer Process Reliability
NPSH Margin	Ratio ≥ 1.1	ANSI/HI 9.6.1
Oil Cleanliness	ISO 4406 Cleanliness Code	SKF / Noria
Maintenance Strategy	Predictive (PdM)	U.S. DOE

Prolonging the life of a split case pump requires a holistic technical approach. By strictly adhering to precision alignment, operating within the BEP window, and utilizing predictive data, you can significantly extend your equipment's operational life.

---
