Troubleshooting and Maintaining Split Case Pumps

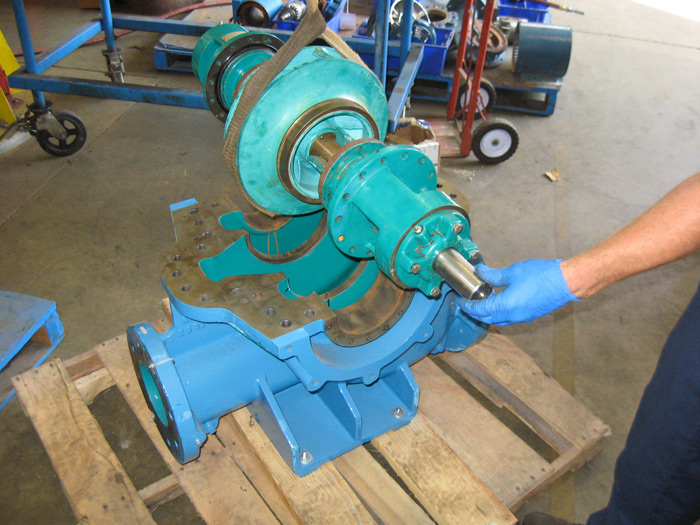

Axially Split Case Pumps are the workhorses of municipal water supply, HVAC systems, and industrial fluid processing. Their design allows for access to rotating assemblies without disturbing the piping, making them highly maintainable.

However, maintenance neglect carries a high price. According to the ARC Advisory Group, unplanned downtime costs industrial manufacturers an estimated $50 billion annually. For high-flow assets like split case pumps, adhering to a rigorous maintenance regime is not just an operational requirement; it is a financial necessity.

This guide outlines evidence-based strategies for maintenance and troubleshooting, utilizing industry data and technical best practices.

1. The Proactive Maintenance Regime

Reliability is built on routine. A comprehensive analysis by bearing manufacturer SKF indicates that over 36% ofpremature bearing failures are caused by incorrect specification and poor lubrication practices. A structured Preventive Maintenance (PM) schedule significantly extends the Mean Time Between Failures (MTBF).

Daily and Weekly Checks

• Visual Inspection: Check for leaks at the stuffing box or mechanical seal.

• Packing: 40–60 drops/minute is normal for cooling and lubrication.

• Mechanical Seals: Should be leak-free.

• Temperature Monitoring: Ensure bearing housing temperatures do not exceed manufacturer specifications. The general rule of thumb is: T(max) ≤ 180°F (82°C)

• Vibration Analysis: Listen for changes in noise profiles. High-frequency whining often indicates the onset of cavitation.

Monthly and Quarterly Tasks

• Lubrication Management: Grease bearings based on operating hours, not just calendar dates. Over-greasing is a leading cause of elevated operating temperatures and seal rupture.

• Foundation Integrity: Check anchor bolts. Loose grouting can lead to "Soft Foot," causing casing distortion and internal rubbing.

• Technical Note: Always operate the pump near its Best Efficiency Point (BEP). According to Hydraulic Institute (HI) standards, operating too far left or right of the BEP curve causes radial loads to spike, leading to Shaft Deflection.

• Conceptual Formula for Radial Force: Fr = K × H × s × D2 × B2 (Where Fr is Radial Force, H is Head, and K is a radial thrust factor based on flow rate.)

2. Troubleshooting Common Failure Modes

When performance degrades, a systematic root cause analysis is required. Below are the three most common issues facing split case pumps.

A. Cavitation

Cavitation occurs when the Net Positive Suction Head Available (NPSHa) is lower than the Net Positive Suction Head Required (NPSHr). This leads to the formation and violent collapse of vapor bubbles, eroding the impeller.

• The Golden Rule: To avoid cavitation, the system must meet the following condition (including a safety margin): NPSHa ≥ NPSHr + 0.5m (or 2 ft)

• Symptoms: Sound of "pumping gravel," fluctuating discharge pressure, high vibration.

• Root Causes: Clogged suction strainers, high fluid temperature (increasing vapor pressure), or excessive suction lift.

B. Excessive Vibration

Vibration is the greatest enemy of rotating equipment. A study in the International Journal of Rotating Machinery suggests that misalignment accounts for up to 50% of rotating machinery breakdowns.

• Symptoms: Loose fasteners, excessive noise, premature bearing failure.

• Misalignment: Angular or parallel deviation between the motor and pump shaft.

• Imbalance: Debris stuck in the impeller or eroded vanes.

• Corrective Action: Perform laser alignment. The standard tolerance is typically < 0.05 mm (0.002 inches).

C. Mechanical Seal Failure

Seals are the most frequently replaced component. DuPont maintenance data indicates that mechanical seals account for nearly 30-50% of pump repair costs.

• Symptoms: Fluid leakage, crystallized residue on the shaft.

• Root Causes: Dry running, chemical incompatibility, or shaft deflection caused by operating off-BEP.

3. Advanced Diagnostics: Moving to Predictive Maintenance (PdM)

Transitioning from Reactive to Predictive Maintenance can reduce overall maintenance costs by 25-30% (Source: U.S. Department of Energy).

Vibration Spectrum Analysis (FFT)

Using accelerometers to capture vibration signatures allows technicians to identify specific faults based on frequency:

(Note: BPF = Number of Vanes × RPM)

4. Hydraulic Performance and Energy Efficiency

Pumping systems account for nearly 20% of the world's electrical energy demand. Maintaining split case pumps is also an energy-efficiency strategy.

• Wear Ring Clearances: As wear rings degrade, internal recirculation increases, causing volumetric efficiency to drop. A clearance increase of 50% can reduce total efficiency by 2–4 points.

• Pump Efficiency Calculation: Periodically testing the actual operating efficiency is critical: η = (ρ · g · Q · H) / Shaft Power (Where η is Efficiency, Q is Flow, and H is Head)

Summary Checklist
