How to Select A Split Case Pump?

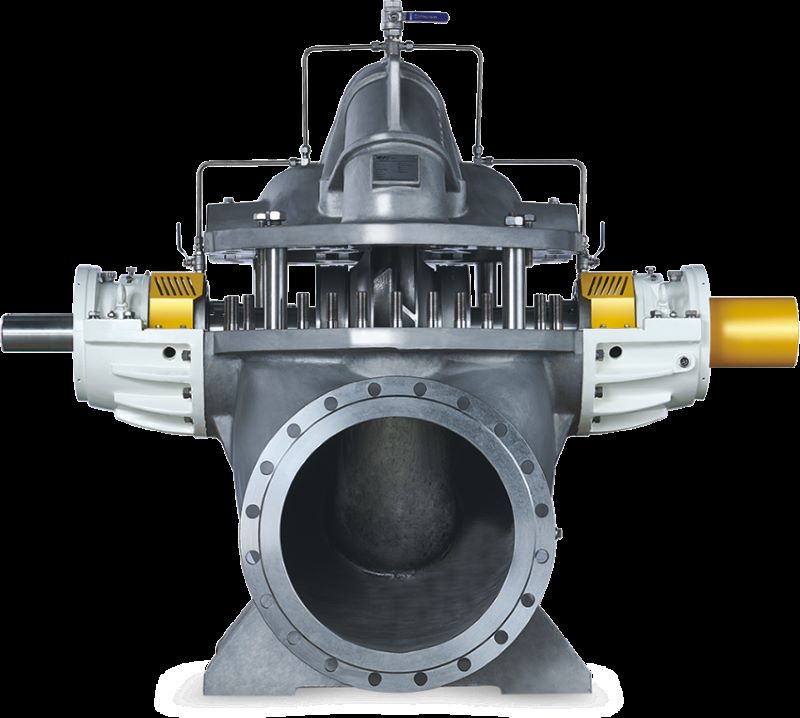

Split case pumps—specifically axially split, double suction centrifugal pumps—are the workhorses of high-flow applications, from municipal water treatment to power generation. Their design allows for hydraulic balance and ease of maintenance.

However, improper selection significantly impacts operational expenditure (OPEX). According to the U.S. Department of Energy (DOE) in their Industrial Motor Systems Market Assessment, pumping systems account for nearly 20% of total industrial electricity usage, yet over 75% of these systems are oversized, leading to inefficiency and premature failure [1].

This guide outlines the critical technical criteria for selecting the optimal split case pump, supported by industry standards and engineering formulas.

1. Hydraulic Performance and the BEP

The most critical step is matching the pump's performance curve with the system's requirement curve.

• Best Efficiency Point (BEP): Select a pump where your duty point falls within the Preferred Operating Region (POR), typically 80% to 110% of the BEP. Source: ANSI/HI 9.6.3-2017 states that operating outside the POR significantly increases hydraulic radial loads and vibration.

• Net Positive Suction Head (NPSH): To prevent cavitation—a phenomenon that causes pitting and vibration—accurate calculation of the margin is essential. Formula: NPSH_A ≥ NPSH_3% + Margin. Standard: The Hydraulic Institute (HI) recommends a margin ratio (NPSH Available / NPSH Required) of 1.1 to 1.3 for standard water applications [2].




2. Mechanical Integrity and Shaft Design

Reliability is dictated by mechanical robustness. When evaluating manufacturer datasheets, prioritize shaft stiffness to minimize seal degradation.

Shaft Stiffness (Slenderness Ratio)

Shaft deflection is a primary cause of mechanical seal failure.

• The Metric: Look for a low L⊃3;/D⁴ ratio, where L is the span between bearings and D is the shaft diameter.

• Deflection Limits: Ensure shaft deflection is less than 0.05 mm (0.002 inches) at the seal face. Reference: API 610 (12th Edition) standards set rigorous deflection limits to ensure seal longevity.

Bearing Life (L10h)

Bearings must handle radial loads and residual axial thrust.

• Calculation: The basic rating life depends on the dynamic load rating (C) and equivalent dynamic bearing load (P), inversely proportional to RPM (n).

• Standard: Specify an L10h of at least 50,000 hours for continuous operation, surpassing the standard 25,000 hours often found in lower-tier specifications.


3. Material Selection and Fluid Dynamics

Material selection must align with the fluid's chemical properties to prevent erosion-corrosion.

• Failure Statistics: A study in the International Journal of Pressure Vessels and Piping suggests that corrosion and erosion account for approximately 30-40% of pump failures in industrial settings [3].

• Impeller & Rings: Upgrade Recommendation: Specify ASTM A743 CF8M (316 Stainless Steel) over Bronze. Benefit: 316SS provides superior resistance to flow-accelerated corrosion (FAC) and cavitation damage.

4. Life Cycle Cost (LCC) Analysis

Initial purchase price (capital cost) typically represents less than 10% of a pump's total lifecycle cost. Energy dominates the equation.

• The LCC Equation: LCC = Initial Cost + Energy Cost + Maintenance Cost + Downtime Cost (Note: Energy Cost often exceeds 85% of the total LCC).

• Variable Frequency Drives (VFD): Implementing VFDs can reduce energy consumption by 30-50% by adhering to the Affinity Laws, which state that power consumption is proportional to the cube of the speed.

Summary Checklist for Engineers

References:

1. U.S. Department of Energy. (2014). Premium Efficiency Motor Selection and Application Guide.

2. Hydraulic Institute. (2020). ANSI/HI 9.6.1: Rotodynamic Pumps - Guideline for NPSH Margin.

3. Europump & Hydraulic Institute. (2001). Pump Life Cycle Costs: A Guide to LCC Analysis for Pumping Systems.
