How to Make Split Case Pumps More Efficient?

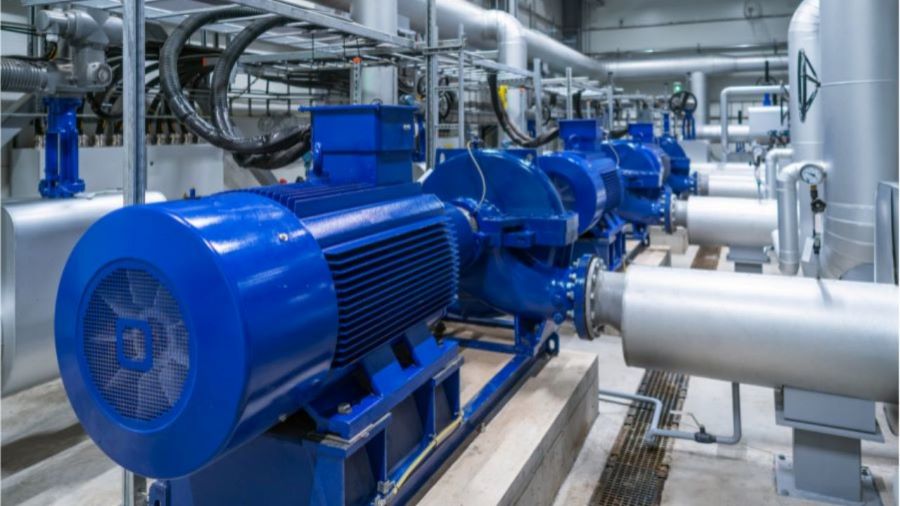

Split case pumps are ubiquitous in high-flow applications like cooling towers, municipal water distribution, and district heating. However, they are also massive energy consumers. According to the U.S. Department of Energy (DOE), pumping systems account for nearly 20% of the world’s electrical energy demand and up to 25% – 50% of the energy usage in certain industrial plant operations [1].

Improving the efficiency of a split case pump is not just an engineering exercise; it is a financial imperative. This guide outlines actionable, technical strategies to optimize performance and reduce Life Cycle Costs (LCC).

1.Optimize Impeller Geometry and Trimming

The most common cause of inefficiency is "oversizing." Engineers often specify pumps with safety margins that are too large, causing the pump to run to the left of its Best Efficiency Point (BEP).

• The Problem: Running too far left on the curve causes recirculation, cavitation, and vibration.

• The Solution: If a pump is generating more head than the system requires, the discharge valve is often throttled, which wastes energy. Instead, trim the impeller.

• The Data: According to the Hydraulic Institute, trimming an impeller to match the actual system curve can reduce energy consumption by 10% to 15% [2].

The Physics of Trimming (Affinity Laws)

The relationship between impeller diameter (D) and power (P) is cubic, meaning a small reduction in diameter yields massive energy savings.

Formula: P2 / P1 = (D2 / D1)⊃3;

Where P is Power and D is Diameter.

Technical Note: Trimming should generally be limited to 75% of the maximum impeller diameter to prevent hydraulic instability due to the wider gap between the impeller tip and the cutwater.

2. Upgrade Wear Rings (Clearance Management)

Split case pumps rely on wear rings to restrict high-pressure fluid from the discharge side recirculating back to the low-pressure suction side.

• The Physics: As wear rings degrade, the clearance opens up. According to Pumps & Systems, for every doubling of the design clearance, overall pump efficiency drops by an estimated 1% to 3% (depending on specific speed) [3].

• Material Upgrade: Consider upgrading from metallic (bronze/steel) rings to non-metallic composite materials (e.g., PEEK or Carbon Graphite).

• The Benefit: Composites allow for clearances 50% tighter than API 610 standards for metal without the risk of seizing (galling).

Volumetric Efficiency Impact

The volumetric efficiency is directly tied to leakage flow through the wear rings.

Formula: Efficiency (Volumetric) = Q / (Q + Q_leak)

Where Q is Discharge Flow and Q_leak is Leakage Flow (proportional to clearance area).

3. Implement Variable Frequency Drives (VFDs)

For systems with variable demand (e.g., HVAC cooling loops), running a pump at fixed speed is inefficient.

• The Affinity Laws: Pump performance follows the Affinity Laws, where power consumption is proportional to the cube of the speed.

• The Impact: Reducing pump speed by just 20% leads to a roughly 50% reduction in power consumption.

• Industry Stat: A report by Europump suggests that switching from throttling valves to VFD control can save 30% to 50% of pump energy in variable flow applications [4].

Power Savings Calculation

The power reduction potential when slowing from Speed N1 to N2 is calculated as:

Formula: P_new = P_rated × (N_new / N_rated)⊃3;

4. Apply Hydrophobic Internal Coatings

The interior surface roughness of the pump casing (volute) creates friction losses. Cast iron casings often have rough surfaces straight from the foundry.

• The Solution: Apply an epoxy or ceramic-based low-friction coating to the volute and impeller.

• Hydraulic Polish: These coatings smooth the surface, reducing the boundary layer drag coefficient.

• The Results: Studies published in the Journal of Applied Fluid Mechanics indicate that coating the interior of a centrifugal pump can improve hydraulic efficiency by 2% to 4%, with the highest gains seen in smaller specific speed pumps [5].

Summary of Efficiency Gains

The following table summarizes the potential efficiency improvements based on data from the DOE and Hydraulic Institute:

Conclusion

Maximizing the efficiency of split case pumps requires a holistic approach. It is not enough to buy a premium efficiency motor; you must address the hydraulics (wear rings and coatings), the control strategy (VFDs), and the system fit (impeller trimming). By implementing these technical upgrades, facilities can significantly reduce their carbon footprint and operational expenditures.

References

1. U.S. Department of Energy (DOE). (2006). Improving Pumping System Performance: A Sourcebook for Industry. Energy Efficiency and Renewable Energy.

2. Hydraulic Institute. (2018). Optimizing Pumping Systems: A Guide for Improved Energy Efficiency, Reliability, and Profitability.

3. Pumps & Systems Magazine. (2015). The Impact of Wear Ring Clearance on Pump Efficiency.

4. Europump. (2004). System Efficiency: A Guide for the Design, Selection and Operation of Pumping Systems.

5. Journal of Applied Fluid Mechanics. (2016). Experimental Investigation of the Effect of Coating on Centrifugal Pump Performance.
