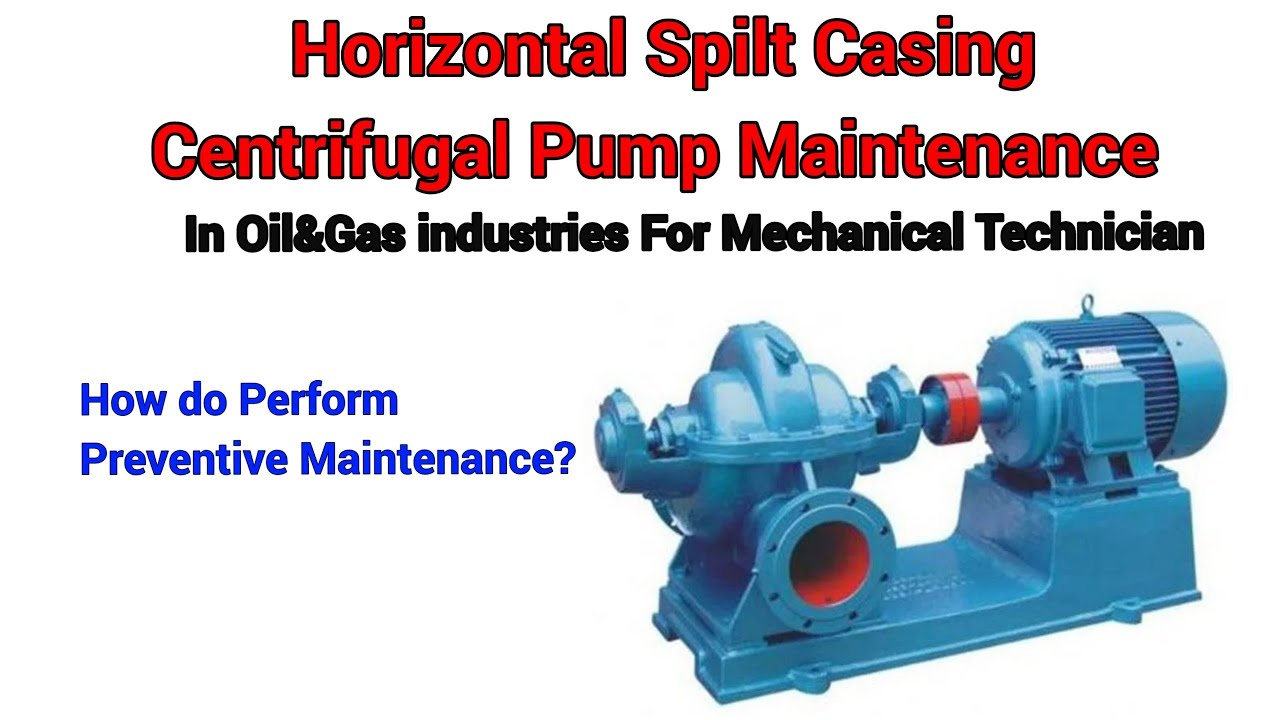

How to Maintain Split Case Pumps?

Split case pumps are the workhorses of HVAC, municipal water supply, and fire protection systems. However, their reliability is often taken for granted until a catastrophic failure occurs. According to industry Life Cycle Cost (LCC) analysis, 90% of the total cost of a pump comes from operation (energy and maintenance), while only 10% is the initial purchase price.

This guide outlines a data-driven approach to maintaining split case pumps, moving from reactive "firefighting" to precision reliability, incorporating data from the U.S. Department of Energy (DOE) and Reliabilityweb.

1.The Strategy: Predictive vs. Reactive

The most effective maintenance is not just fixing what is broken; it is predicting failure before it happens.

• Reactive Maintenance (Run-to-Failure): This is the costliest method due to unplanned downtime and secondary damage (e.g., a bearing failure destroying the shaft).

• Predictive Maintenance (PdM): Using real-time data to dictate service intervals.

Industry Insight: According to the U.S. Department of Energy (DOE) "Operations & Maintenance Best Practices Guide," implementing a predictive maintenance program can yield:

25% – 30% reduction in maintenance costs.

70% – 75% elimination of breakdowns.

20% – 25% increase in production/uptime.

2. Vibration Analysis: The Heartbeat of the Pump

Vibration is the earliest indicator of internal distress. By using Fast Fourier Transform (FFT) spectrum analysis, technicians can identify issues invisible to the naked eye.

Key Failure Modes & Statistics

• Bearing Condition: Bearings account for 40% – 50% of all rotating equipment failures. High-frequency vibration often indicates early-stage pitting.

• Imbalance: A spike in vibration at 1x RPM (running speed) usually suggests impeller imbalance.

• Misalignment: Harmonics at 2x RPM often indicate coupling misalignment.

Bearing Life Calculation

To quantify expected life, reliability engineers use the L10 Life formula. The goal is to ensure the actual load (P) is significantly lower than the rated load (C).

Formula: L10 Bearing Life

L10 = (C / P)^p × (1,000,000 / 60n)

• L10: Hours of operation that 90% of bearings will survive.

• C: Basic dynamic load rating.

• P: Equivalent dynamic load.

• n: Rotational speed (RPM).

• p: Exponent (3 for ball bearings, 10/3 for roller bearings).

3. Lubrication and Tribology

Lubrication is not just about "adding grease"; it is about maintaining a micro-thin film that separates metal surfaces.

• Contamination Control: According to RKB Bearing Industries, 80% of bearing failures are attributed to improper lubrication (particle contamination or wrong viscosity).

• Avoid Over-Greasing: Excess grease causes "churning," which raises internal temperatures and degrades the lubricant rapidly.

• Oil Analysis: For oil-lubricated pumps, check quarterly for moisture, metal particulates, and viscosity breakdown.

4. Precision Shaft Alignment

Misalignment is a silent killer of split case pumps. Because the pump and motor are separate units connected by a coupling, they must be perfectly collinear.

• The Tolerance: Use Laser Alignment tools rather than dial indicators for higher accuracy.

• Soft Foot: Before aligning, check for "soft foot"—where one of the motor feet does not sit flat on the base. Tightening a bolt on a soft foot distorts the frame.

• Fact: 50% of machine breakdowns are directly attributed to incorrect shaft alignment. Even a slight offset dramatically increases the load on seals and bearings.

Alignment Tolerance Rule of Thumb

For standard operation, the allowable offset is generally calculated as:

Tolerance ≈ 0.0005 × RPM (mils/inch)

For a standard 1800 RPM pump, the offset should be kept within 0.002 inches (0.05 mm).

5. Hydraulic Performance & Efficiency

Over time, the internal gaps between the impeller and the case wear rings will widen due to recirculation and erosion.

Pump Efficiency Check

Technicians should annually check the pump's efficiency to determine if the wear rings need replacement.

Formula: Pump Efficiency

Efficiency (%) = [ (Density × Gravity × Flow × Head) / Shaft Power ] × 100

• Action Threshold: When wear ring clearance doubles, pump efficiency can drop by 3% – 5%. This is the trigger point for replacement.

• Cavitation: Listen for a sound like "pumping gravel." This indicates Net Positive Suction Head (NPSH) issues, leading to impeller pitting.

• Deadheading: Never run a split case pump with the discharge valve closed. Fluid heats up rapidly, leading to vaporization and seal failure.

6. Mechanical Seals and Packing

The seal is the most vulnerable component of a split case pump.

Mechanical Seals

• Failure Rates: Industry reports suggest 85% of mechanical seals fail before they naturally wear out.

• Root Causes: Most premature failures are due to operating off the Best Efficiency Point (BEP), causing shaft deflection that forces seal faces open.

Gland Packing (if applicable)

• Leak Rate: Packing must leak to cool the shaft. A leak rate of 40-60 drops per minute is standard. Overtightening causes shaft sleeve damage.

Summary Checklist

Component	Frequency	Action	Metric / Target
Vibration	Monthly	Spectrum Analysis	< 0.15 in/s (RMS)
Lubrication	Quarterly	Grease (calculated amount) or Oil Analysis	ISO 4406 Cleanliness
Alignment	Annually	Laser Alignment & Soft Foot Check	Offset < 0.05 mm
Seals	Weekly	Inspect leakage & Flush Line Temp	API Flush Plan Flow
Hydraulics	Annually	Head vs. Flow Test	Head drop < 10%

Conclusion

Maintaining a split case pump requires a shift from intuition to data-driven decisions. By monitoring vibration spectra, adhering to strict alignment tolerances, and calculating bearing life, facilities can extend asset life cycles and reduce emergency repair costs significantly.

---
