How to Enhance the Efficiency of Your Split Case Pumps?

In the industrial sector, rotating equipment is the primary driver of energy consumption. According to a report by the U.S. Department of Energy (DOE), pumping systems account for nearly 25% of the total energy consumed by industrial electric motors, with optimization potentials often ranging between 20% to 40% [1].

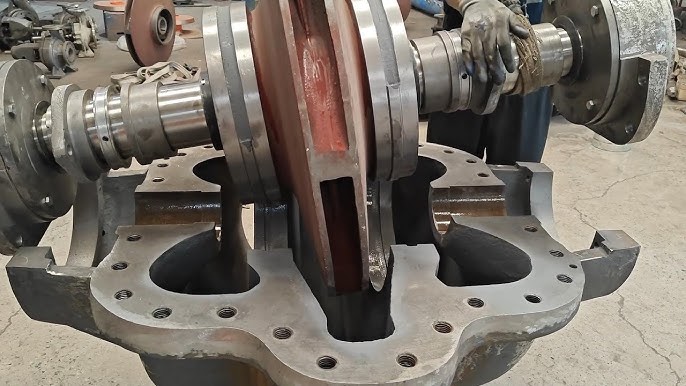

Split case pumps—valued for their high flow rates and ease of maintenance—are the workhorses of HVAC, water treatment, and power generation sectors. However, hydraulic degradation and improper operation can lead to significant energy waste.

Below are technically sound, data-backed strategies to optimize the efficiency of your split case pumps.

1. Operate Within the Best Efficiency Point (BEP)

The most impactful factor on pump efficiency is where the pump operates relative to its Best Efficiency Point (BEP).

• The Technical Reality: Manufacturers design split case pumps to operate most efficiently at a specific flow rate (Q) and head (H).

• The Authority: According to API Standard 610, the "Preferred Operating Region" is between 80% and 110% of the BEP flow rate.

• The Consequence: Deviating from this window causes excessive radial loads, shaft deflection, and vibration. Research by the Hydraulic Institute indicates that reliability decreases drastically when operating below 60% of BEP due to suction recirculation [2].

Reliability vs. Flow Rate:

2. Leverage Variable Frequency Drives (VFDs)

Traditionally, flow control was managed via throttling valves. However, the relationship between pump speed (n) and power consumption (P) is governed by the Affinity Laws.

The Physics: Cube Law

The power consumption of a centrifugal pump is proportional to the cube of its rotational speed. The formula is expressed as:

P2 / P1 = (n2 / n1)⊃3;

Where:

• P1 = Initial Power

• P2 = New Power

• n1 = Initial Speed

• n2 = New Speed

• The Data: Reducing pump speed by just 20% (n2 = 0.8 n1) results in a power reduction of approximately 50%:

  (0.8)⊃3; = 0.512 → 51.2% Power Required

• Industry Insight: A study published in the Journal of Sustainable Energy indicates that retrofitting constant-speed pumps with VFDs yields average energy savings of 30% to 50%.

3. Restore Volumetric Efficiency: Wear Rings

Volumetric efficiency (ηv) is defined by the ratio of the effective flow rate to the total flow rate handled by the impeller, accounting for leakage (QL) through wear rings:

ηv = Q / (Q + QL)

• The Issue: As wear rings degrade, the clearance gap widens. According to Europump, doubling the design clearance can reduce pump efficiency by 1% to 5%, depending on the pump's specific speed (Ns).

• The Solution: Upgrade from standard bronze rings to non-metallic composite materials (e.g., PEEK or reinforced graphite).

• The Gain: Composites allow for clearances up to 50% tighter than API 610 standards without seizing, potentially recovering 2-4% in overall efficiency [3].

4. Apply Hydrophobic and Low-Friction Coatings

Hydraulic friction losses occur as fluid moves across the rough surfaces of the pump casing.

• The Solution: Applying advanced epoxy or ceramic coatings reduces the Roughness Average (Ra) of the internal surfaces.

• The Data: A report by the European Commission on Industrial Efficiency highlights that applying low-friction coatings to the volute and impeller can improve efficiency by 2% to 3% on new pumps and significantly more on older, corroded units [4].

Efficiency Gains by Upgrade Type:

5. Mitigate Cavitation and Monitor NPSH

Cavitation occurs when the Net Positive Suction Head Available (NPSHa) falls below the Net Positive Suction Head Required (NPSHr):

NPSHa > NPSHr + 0.5 m (Safety Margin)

• The Mechanism: Vapor bubbles form in low-pressure areas and implode, causing pitting and vibration.

• Efficiency Impact: Severe cavitation disrupts the hydraulic profile, causing a sharp drop in head and efficiency, known as the "breakdown point."

Summary Checklist for Optimization

To maximize ROI, prioritize these maintenance and upgrade activities:

1. Audit the Curve: Verify the pump runs within 80-110% of BEP.

2. Calculated Savings: Use the formula P ∝ n⊃3; to justify VFD investment.

3. Tighten Clearances: Upgrade to composite wear rings to boost volumetric efficiency.

4. Coat Internals: Reduce friction losses identified in EU SAVE reports.

By implementing these strategies, facilities can expect not only a reduction in electrical costs but also an extension of the Mean Time Between Failures (MTBF).
